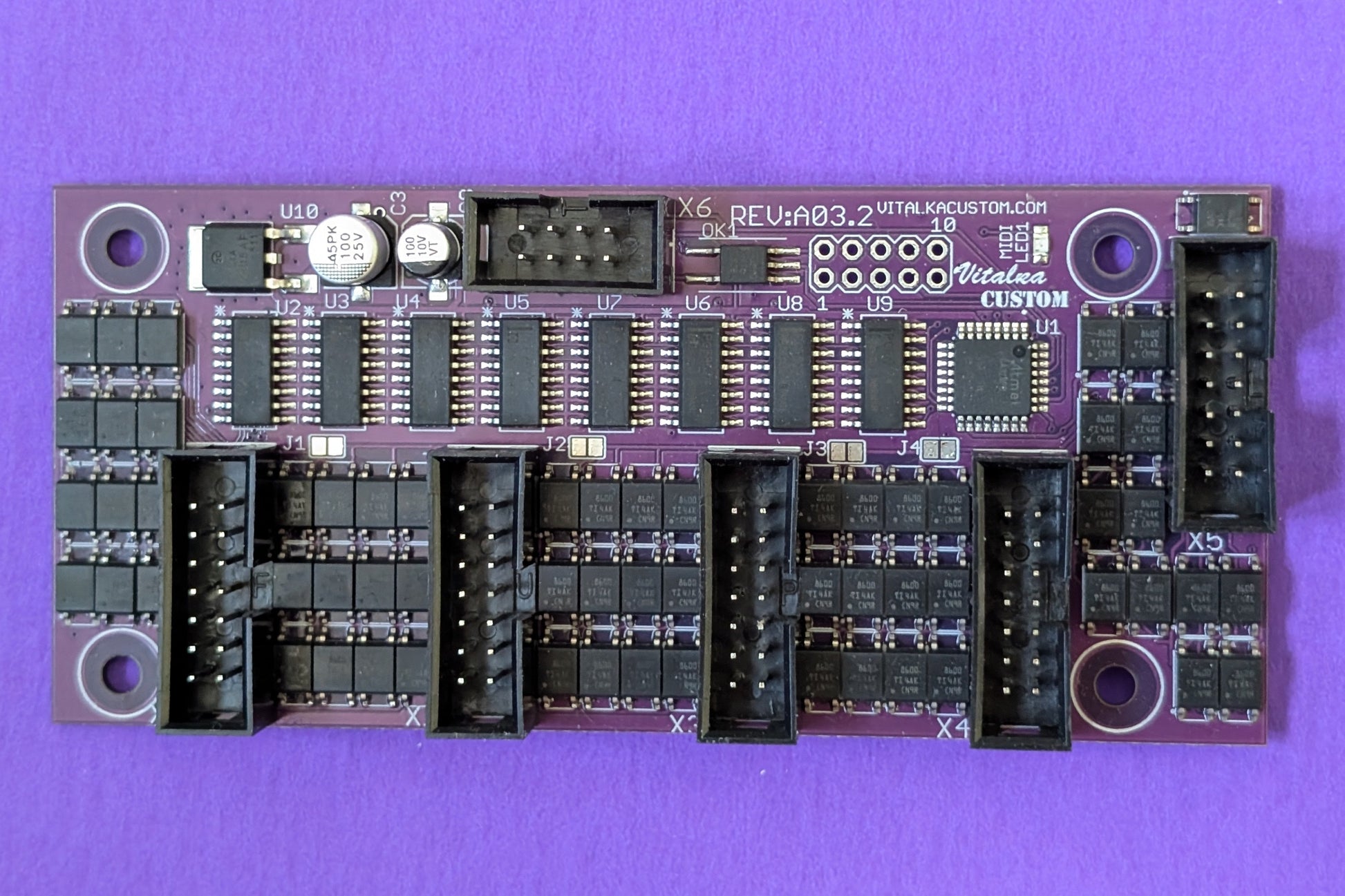

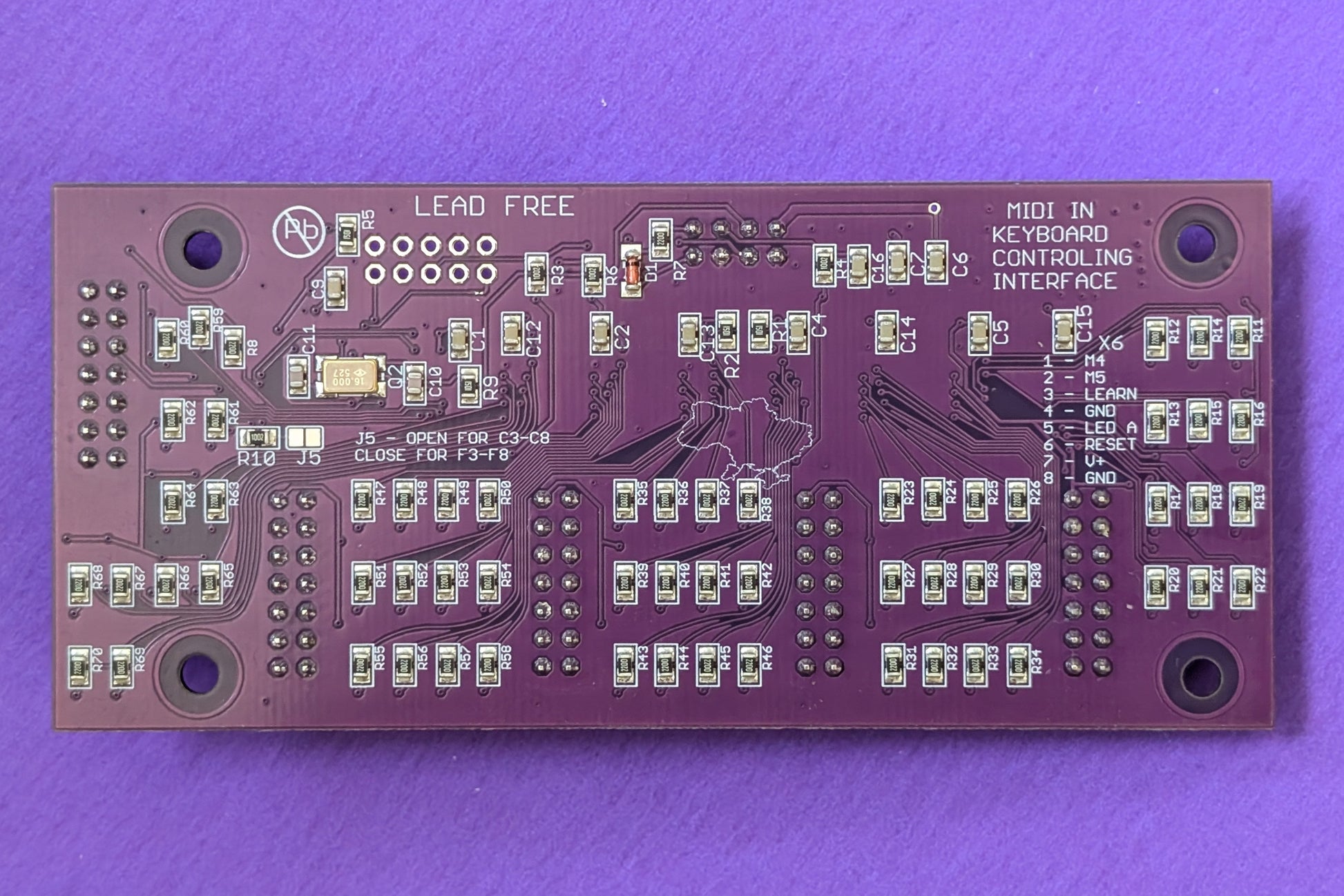

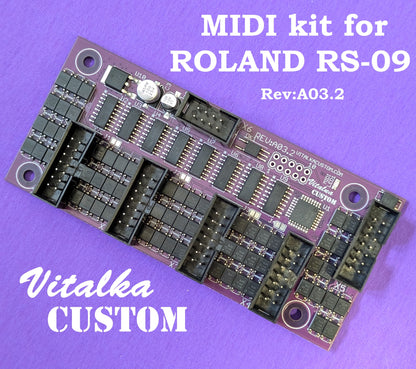

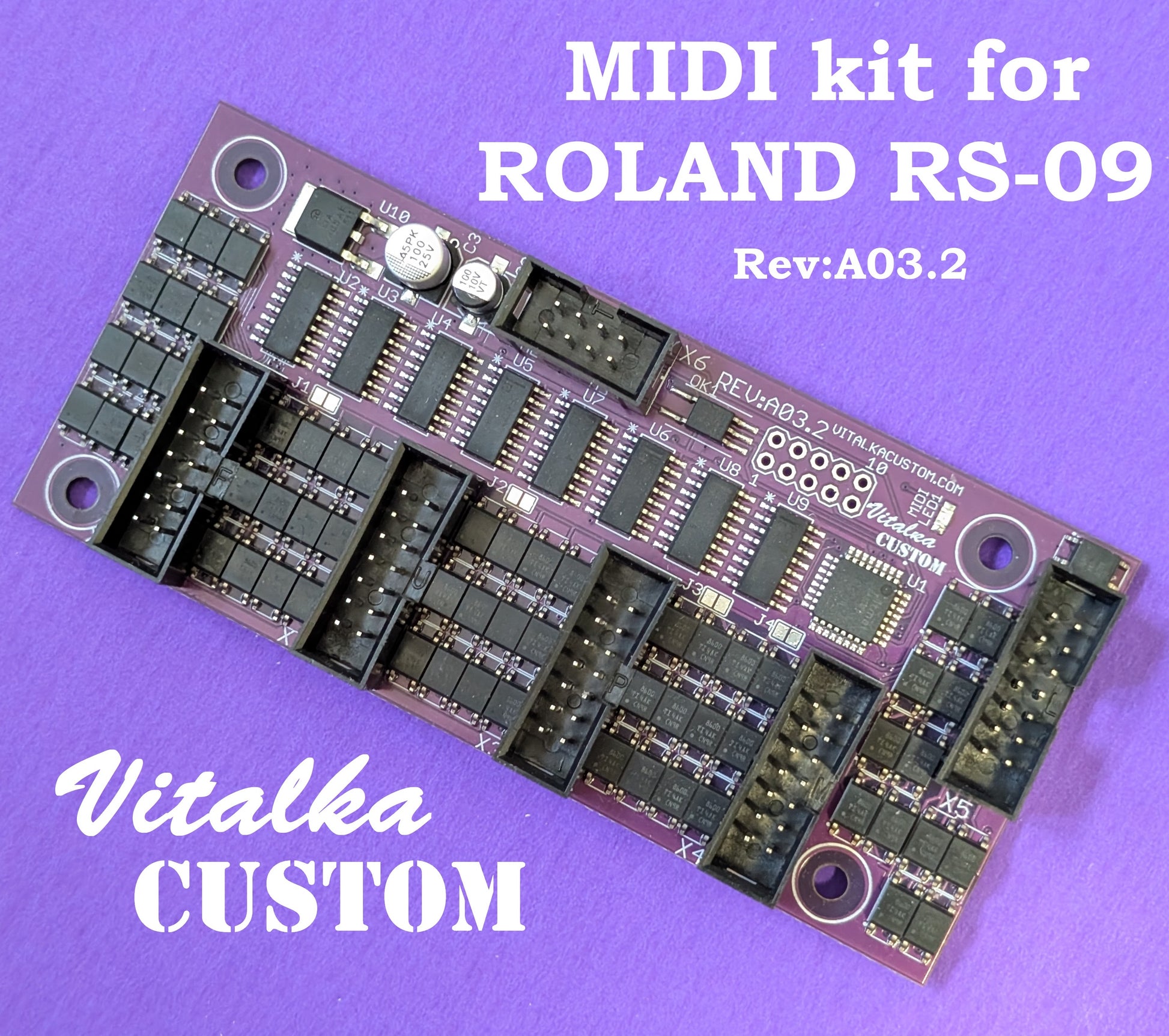

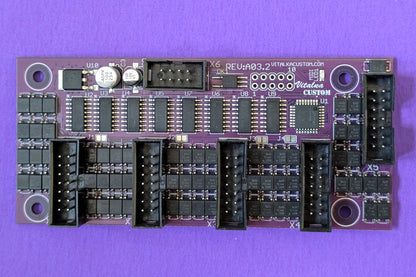

Roland RS-09 MIDI kit RevA03.2

 This retrofit receives channel number and note number trough MIDI protocol. Triggering synth circuit boards the same as you playing on the keyboard with hands.
Other words - It control keyboard and push buttons (ensemble, organ and strings registers). All other controls in your hands. You still can play on build in synth keyboard at the same time when he controls by MIDI. Or you can remove the keyboard and make this synth as desktop. Good chance for giving second life to unit with broken keys that so expensive last years.

Installation is simple, but requires tools for soldering, drilling holes and reading schematic diagrams skills. If you can`t do it yourself - find technician at local repair shop. Job takes approx. 1-2h in moderate speed.

Features:

• MIDI channel learn button. For set which one of 16 channels will be listen.
• Saves learned MIDI channel forever (you can rewrite if need - just push the button again).
• MIDI kit only for keys and push button switching emulation (ON/OFF commands).
• All 6 front panel push button control (for MK2 only).
• Easy installation for people who have some knowledge in electronics and work experience with tools.

• You still can play on keyboard. Even if controls on MIDI at same time.
• No any ground loop problems. Key contacts switches are galvanically isolated from control circuits.

• No need additional power supply. Enough internal power supply in the synth.


Package include:

• Fully assembled PCB.
• 4x M3 screws and nuts.

• 4x Spacers.
• 1x Push button.
• 1x Standard MIDI interface DIN5 socket.
• 1x External LED indicator.

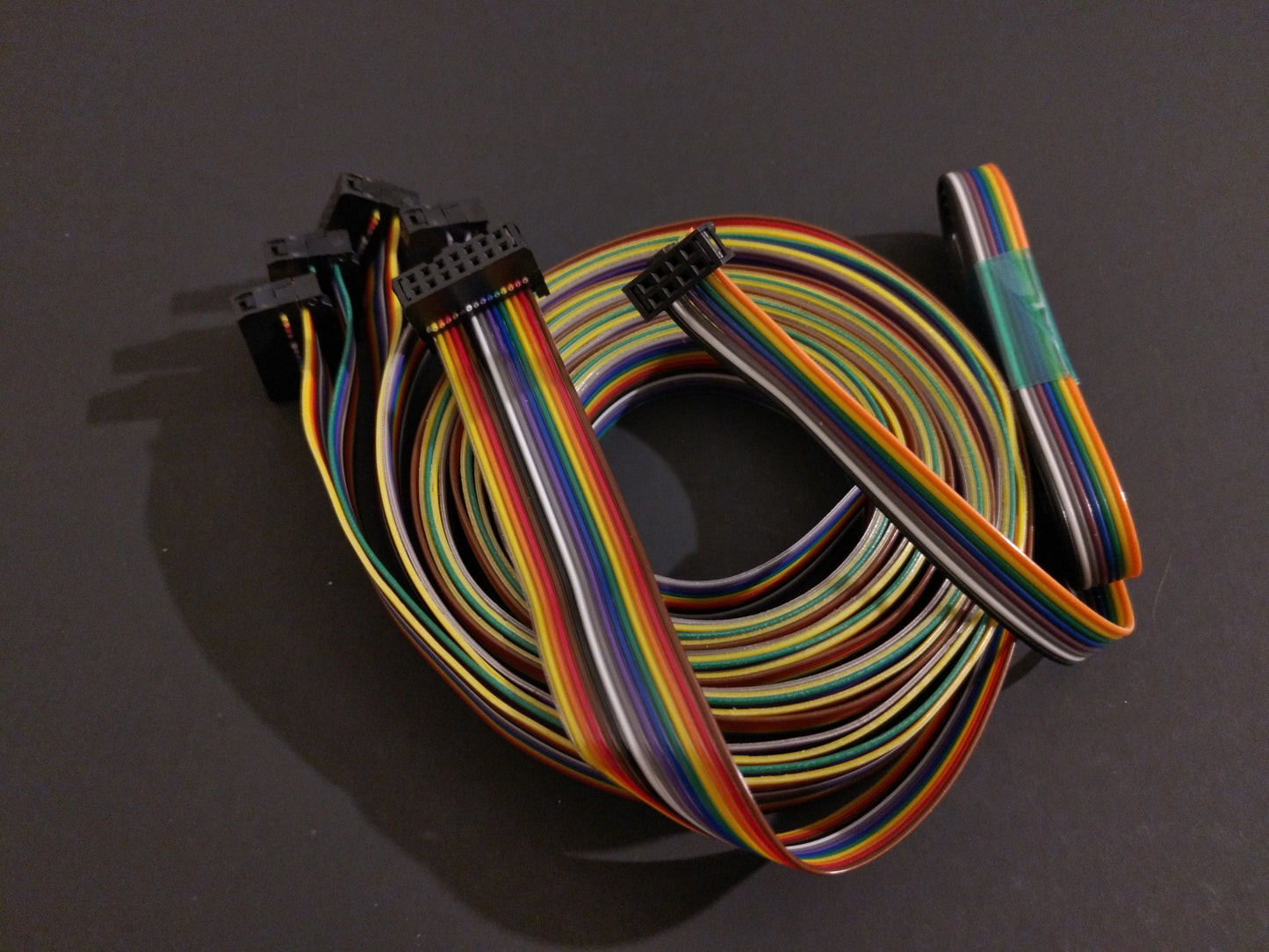

• Ribbon cable set. 5x for key contacts, 1x for system connections.


User operation instructions is so simple:
1.  Stop all MIDI traffic, push learn button. Indicator will blink two times and stay ON to wait for MIDI messages. Send MIDI note on the channel you want for this synth.
More detailed detailed description wrote on  end of installation manual that can be found
For board Rev: A03.2 HERE

VAT and Shipping: If you are outside USA, you may charged by your local customs for import tax. Keep it in mind for estimate final costs. Shipping will provided with track number. In cases overpaid shipping, funds will be refunded to original payment method.

Assembled in USA
