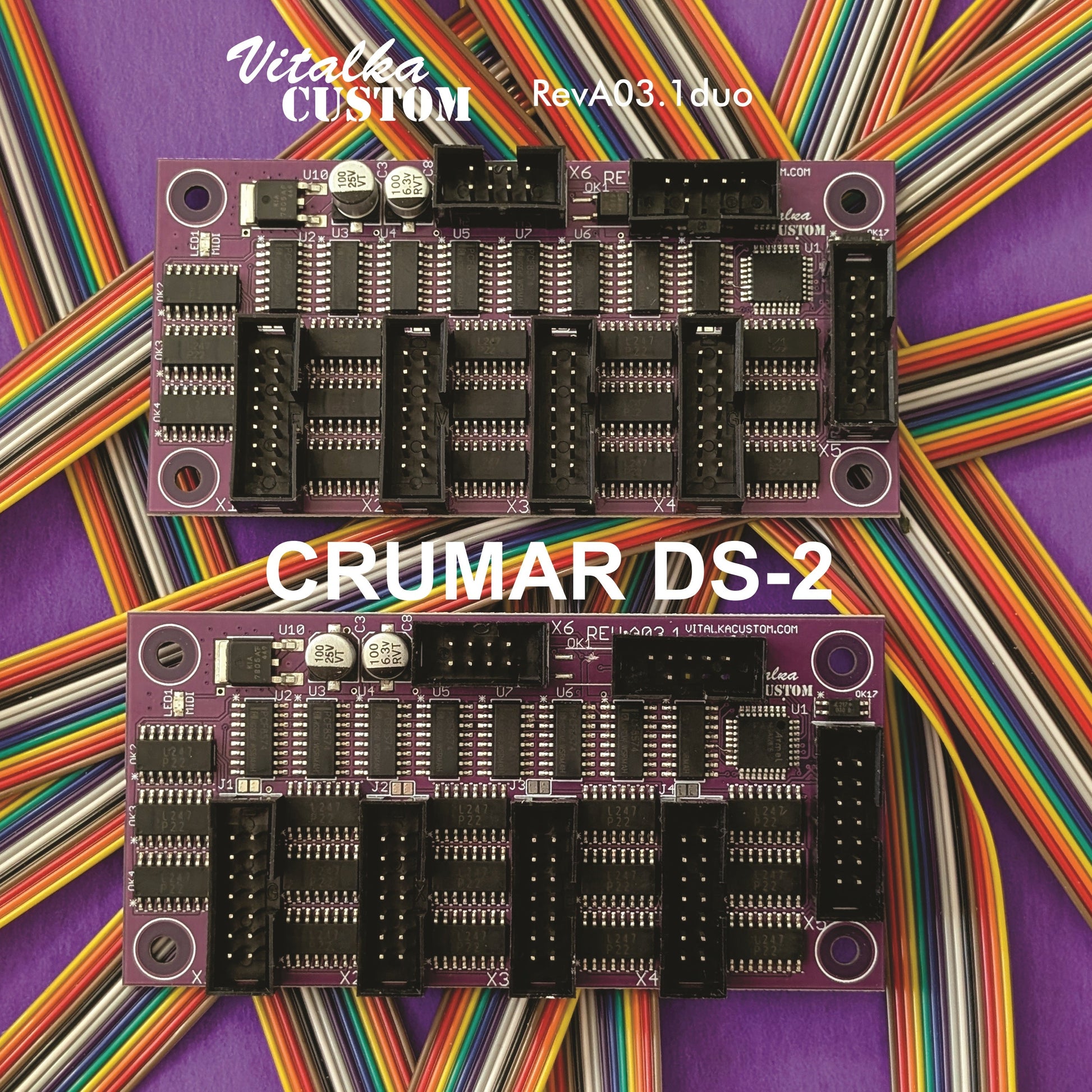

Crumar DS2 MIDI kit retrofit (A03.1 dual board and MIDI channel)

Features:

• Can operate with MIDI channel independent for MONO and POLY section.
• Panic / Learn button.
• Saves learned MIDI channel forever (you can rewrite if need - just  initialize settings  again).
• Easy installation for people who have some knowledge in electronics and work experience with tools.

• No any ground loop problems. Key contacts switches are galvanically isolated from control circuits.

• Retrofit only for key contacts switching emulation.
• No need additional power supply. Enough internal power supply in synth.
• You still can play on keyboard. Even if controls on MIDI at same time.

This MIDI kit receives only channel number and note number trough MIDI protocol. And triggering synth circuit boards the same as you playing on the keyboard with hands.
Other words - It controls only the keyboard, all other controls in your hands. You still can play on build in synth keyboard at the same time when he controls by MIDI.

Installation is relatively simple, but requires tools for soldering, drilling holes and reading schematic diagrams skills.
If you can`t do it yourself - find technician at local repair shop. Job takes approx. 1-2,5h in moderate speed.

Package include:

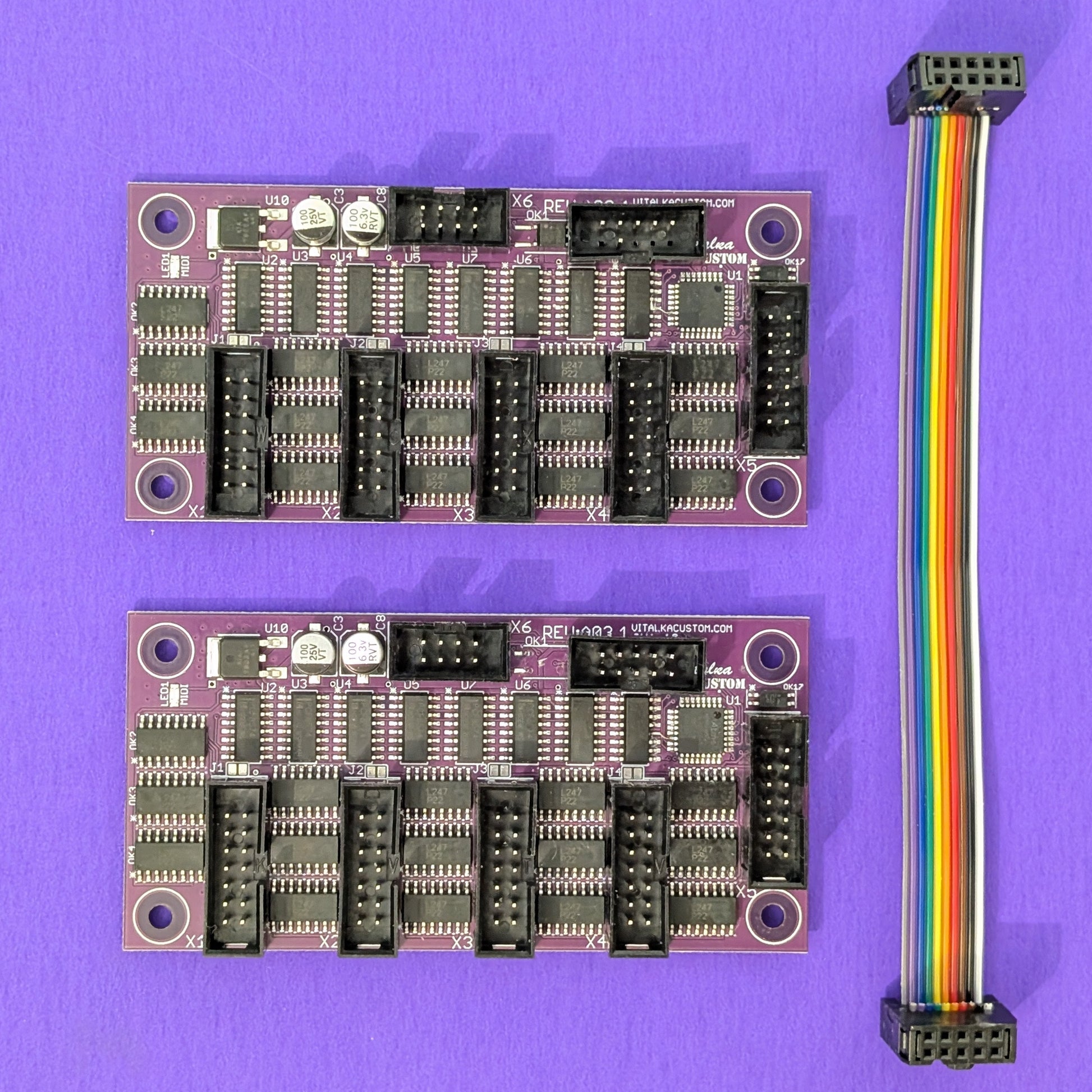

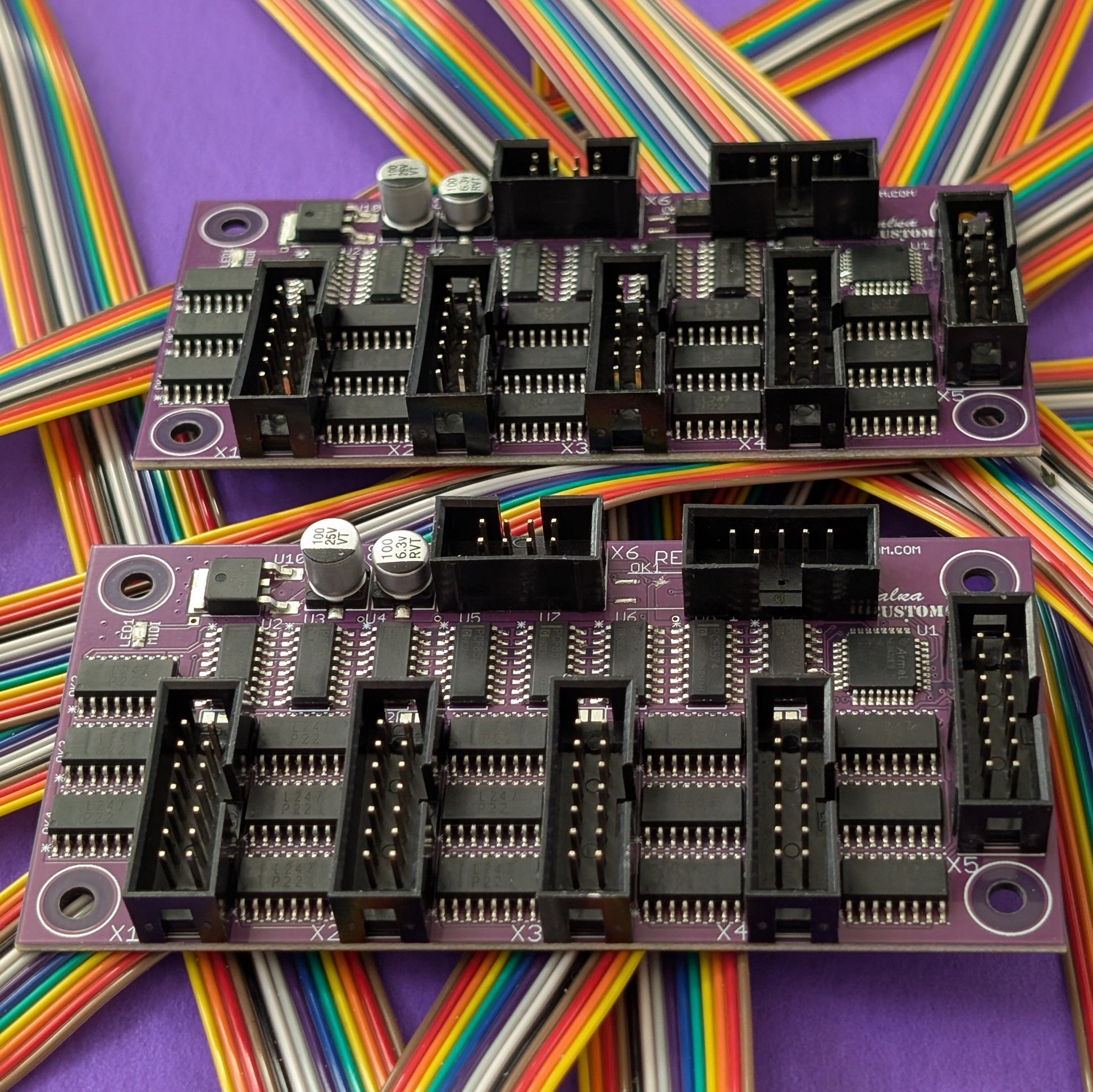

• Two fully assembled PCB.
• 8x Wood screws.
• 8x M3 screws.

• 8x M3 nuts.
• 8x Spacers.
• 1x Push button.
• 1x Standard MIDI interface DIN5 socket.
• 1x External LED indicator.
• Ribbon cable set. 8x for key contacts, 2x for system connections.

Process for set MIDI channel: User operations
  Stop all MIDI traffic.
To set channel for POLY section: push and hold the LEARN button for a 1-2sec. LED will blink fast four times and stay ON to wait for MIDI messages.
For set MIDI channel to MONO section : push and hold the LEARN button for a 2-4sec. LED will blink slow four times and stay ON to wait for MIDI messages. Of course you can set both channels is same.

VAT and Shipping: If you are outside USA, you may charged by your local customs for import tax. Keep it in mind for estimate final costs. Shipping will provided with track number.

Assembled in USA
Installation manual available HERE
